Green Wall screen from DAV NORDIC​

Green Wall screen from DAV NORDIC​

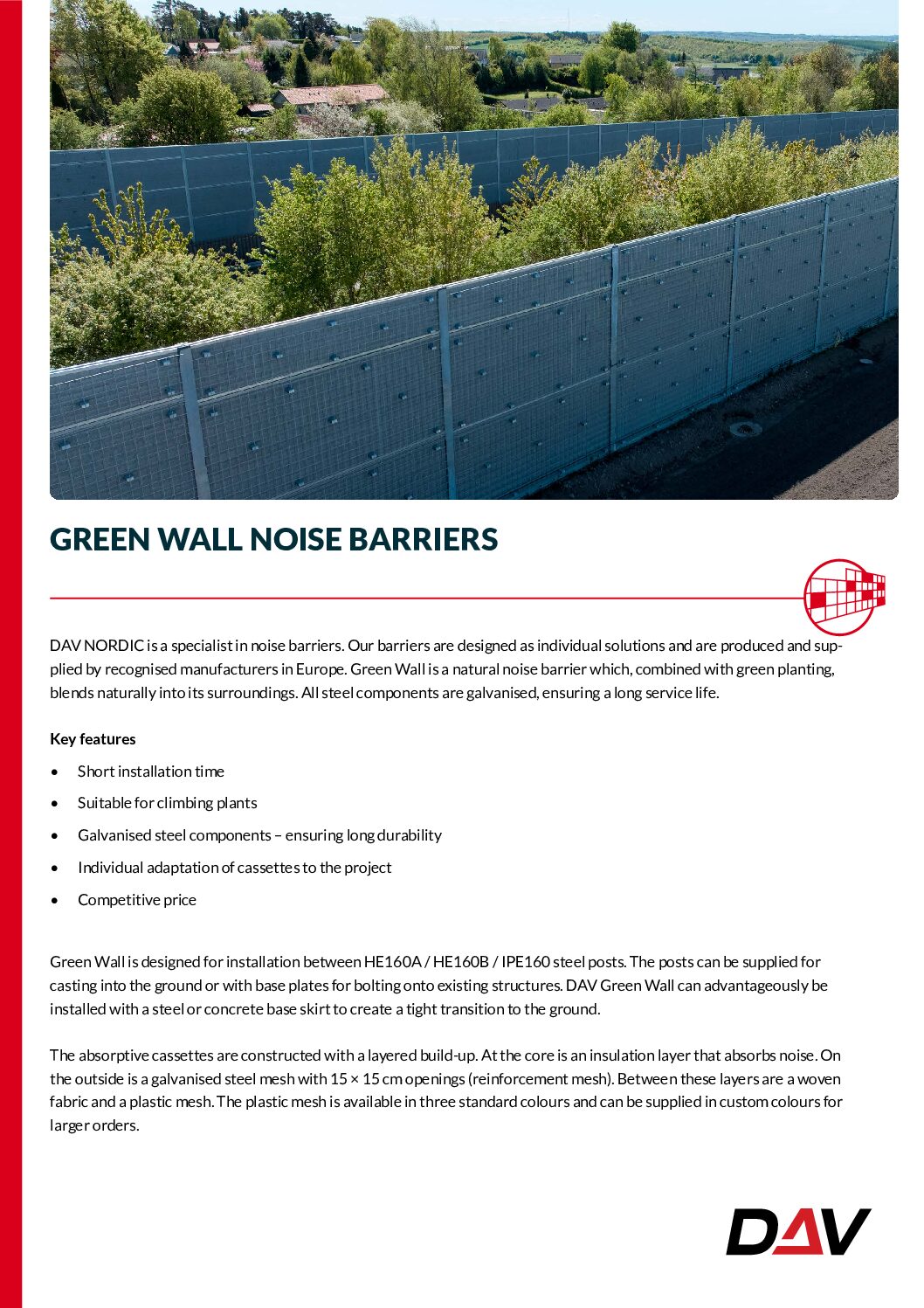

DAV NORDIC is a specialist in noise screens. Our screens are built individually and come from recognized suppliers in Europe.

​Green Wall is a natural noise barrier that, with the green planting, blends naturally into the area.

All steel parts are galvanized and thus ensure a long service life.

• Short installation time
• ​Suitable for climbing plants
• ​Galvanized steel parts – ensures a long life
• ​Individual adaptation of cassettes to the project
• ​Competitive price

Green Wall is designed for assembly between HE160A / HE160B / IPE160 steel columns.

The columns can be delivered for recasting in the ground, or with a base plate for bolting onto existing construction.

​DAV Green Wall can be advantageously installed with a concrete skirt to create a transition towards the terrain.​

​Types

TYPE 1

​Rw = 33 dB
​ΔLR= 28 dB (B3 class)

​ΔLα= 18 dB (A4 class)

​TYPE 2

Rw = 31 dB

ΔLR= 25 dB (B3 class)

​ΔLα= 12 dB (A4 class)

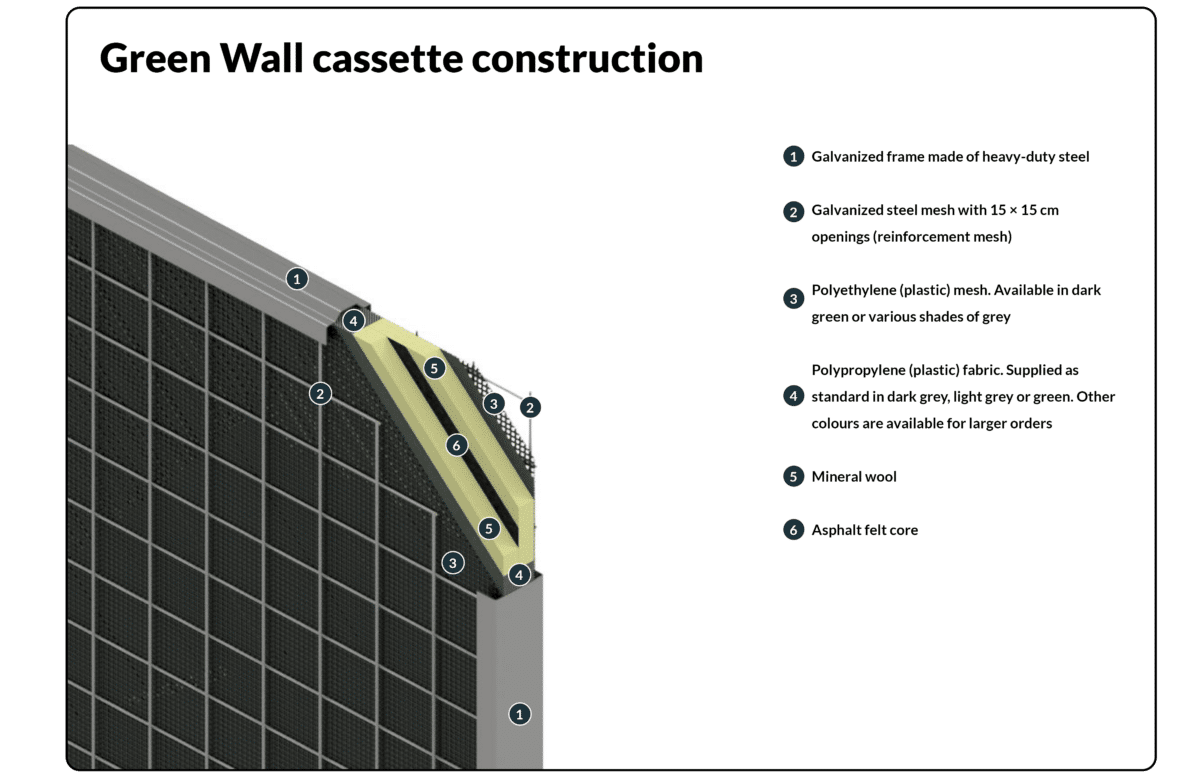

1. ​​Galvanized frame made of strong steel
2. ​Galvanized steel mesh with 15x15cm mesh (rionet).
3. ​Polyethylene (plastic) net. Available in dark green RAL 6007 or light gray RAL 7035
4. ​Polypropylene (plastic) tablecloth. Available in dark green RAL 6007 or light gray RAL 7035
5. Mineral wool
6. ​Core of fiber concrete board (type 1) or asphalt cardboard (type 2)
7. Mineral wool
8. ​Polypropylene (plastic) tablecloth. Available in dark green RAL 6007 or light gray RAL 7035
9. ​Polyethylene (plastic) net. Available in dark green RAL 6007 or light gray RAL 7035
10. ​Galvanized steel mesh with 15x15cm mesh (rionet)

​
