A safety barrier is primarily installed to ensure road safety for users of the road network – whether for commercial or leisure transport. Regardless of purpose, the barrier must protect road users in the event of an accident.
You are here: Home -> Knowledge center -> Good To Know About Crash Barriers
Disclaimer: The following text, including any references to products and case studies, is based solely on Danish laws, regulations, and standards. Interpretations and applications may differ in other countries.
Written by: Bjørn Lyng, Project Manager – Road Safety Division
However, there is one essential factor regarding the testing of safety barriers that must be considered when selecting a system: the test environment.Barriers are tested under optimal conditions, typically on compacted sub-base materials like stabilized gravel.In reality, the conditions are often far from ideal – and as a result, the actual performance of the barrier may differ significantly from the test results. Put simply: the barrier may, in some cases, provide a false sense of security.
As a driver, you want to move safely and efficiently from point A to B.As a road authority, your goal is that the barrier you install performs as expected when an accident occurs – either stopping or redirecting the vehicle safely.Problems arise when a barrier does not perform the way it did during the mandatory crash test required for certification.
Before looking at the solutions – which, fortunately, exist – let’s clarify what CE marking really means, and what standards apply to safety barriers.
The European Union promotes the free movement of goods between member states.To ensure uniform product requirements, the EU has issued legislation requiring all member states to follow common directives. One such requirement is that products must carry a CE mark, which indicates that the product complies with relevant EU directives and harmonized standards.
But note: a CE-marked barrier is not automatically a high-quality or safe solution.
A standard or norm is usually developed because stakeholders want uniform conditions and practices.By adhering to recognized standards, the client gains assurance that both the product and the supplier meet certain levels of quality, safety, and reliability.
For road equipment in Europe, standards are developed by CEN – the European Committee for Standardization.
In Denmark, the standard EN 1317 applies to safety barriers. It specifies how bridge barriers, roadside barriers, and temporary crash barriers must be tested and certified.
EN 1317 defines which tests a barrier must pass to be classified according to performance class, working width, and ASI value.
Working width measures the lateral deformation of a barrier during impact. It is a key factor in calculating the clear zone needed behind a barrier to protect fixed objects.
It is measured as the distance from the front of the system (pre-impact) to the furthest rearward movement of the system’s main components (post-impact), including the system width when struck by a heavier vehicle.

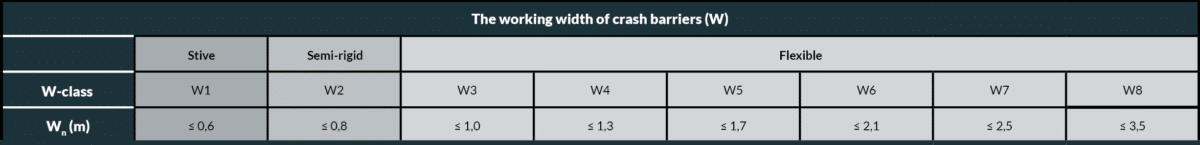

There are eight classes of working width, from W1 to W8, depending on the extent of deformation (figure 1). A related term is Vehicle Intrusion (VI), which refers to the space a vehicle penetrates behind the barrier at a given height – important for protecting elements like noise screens, bridge piers, or lighting poles (figure 2).
This is another indicator of deformation, measured as the distance between the barrier’s front edge before impact and its maximum horizontal displacement. Unlike working width, this is considered the actual deflection and is expressed in meters (figure 1).
ASI measures the physical impact on the driver during a crash.In short: How dangerous is it to hit this barrier?

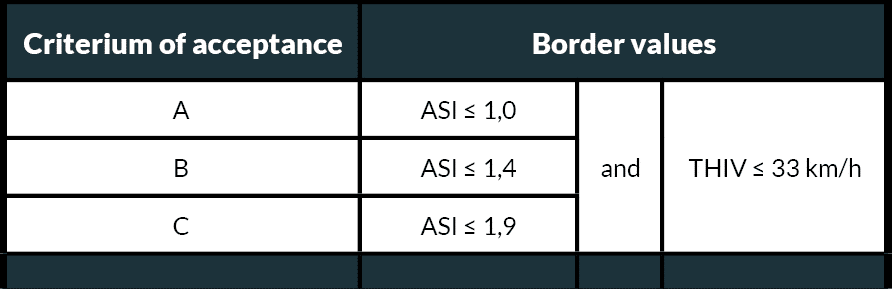

In testing, a dummy represents the driver. The ASI value registered on the dummy determines the severity level.ASI is categorized into:
In Denmark, barriers are typically offered with ASI Class A or B.

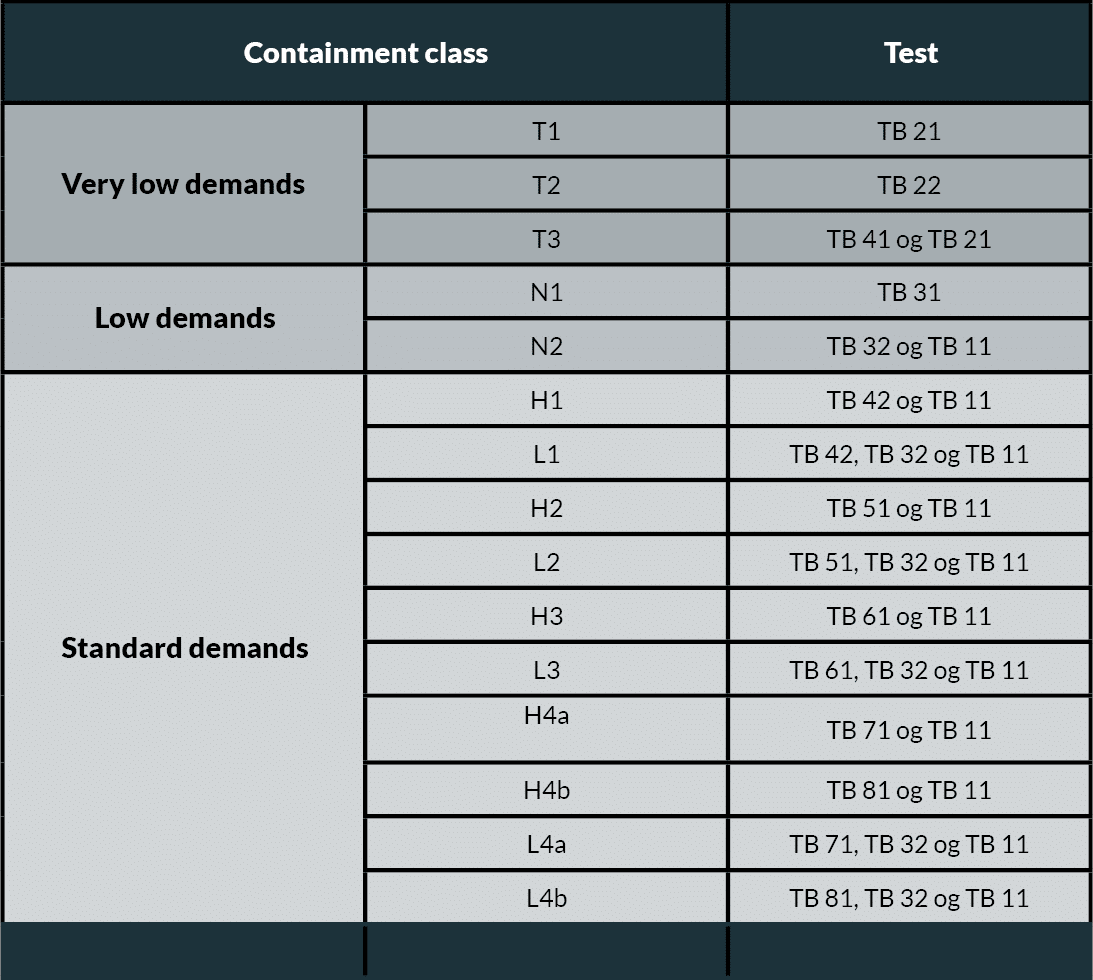

This defines how well a system can restrain a vehicle upon impact.
Each containment level corresponds to specific crash tests. New systems must be tested at least twice:
Containment level classification is based on the heaviest test vehicle. The light vehicle remains constant across tests.
Based on test results, all relevant performance parameters are calculated (figure 3).
Crash tests are conducted at specialized proving grounds – not simulations.Unmanned vehicles are driven into the installed barrier from different angles, at various speeds, and with different vehicle types.These physical tests are costly and sometimes require multiple runs to achieve valid results.
The test setup includes:
Typically, this includes compacted gravel or similar materials that support barrier posts optimally during impact.

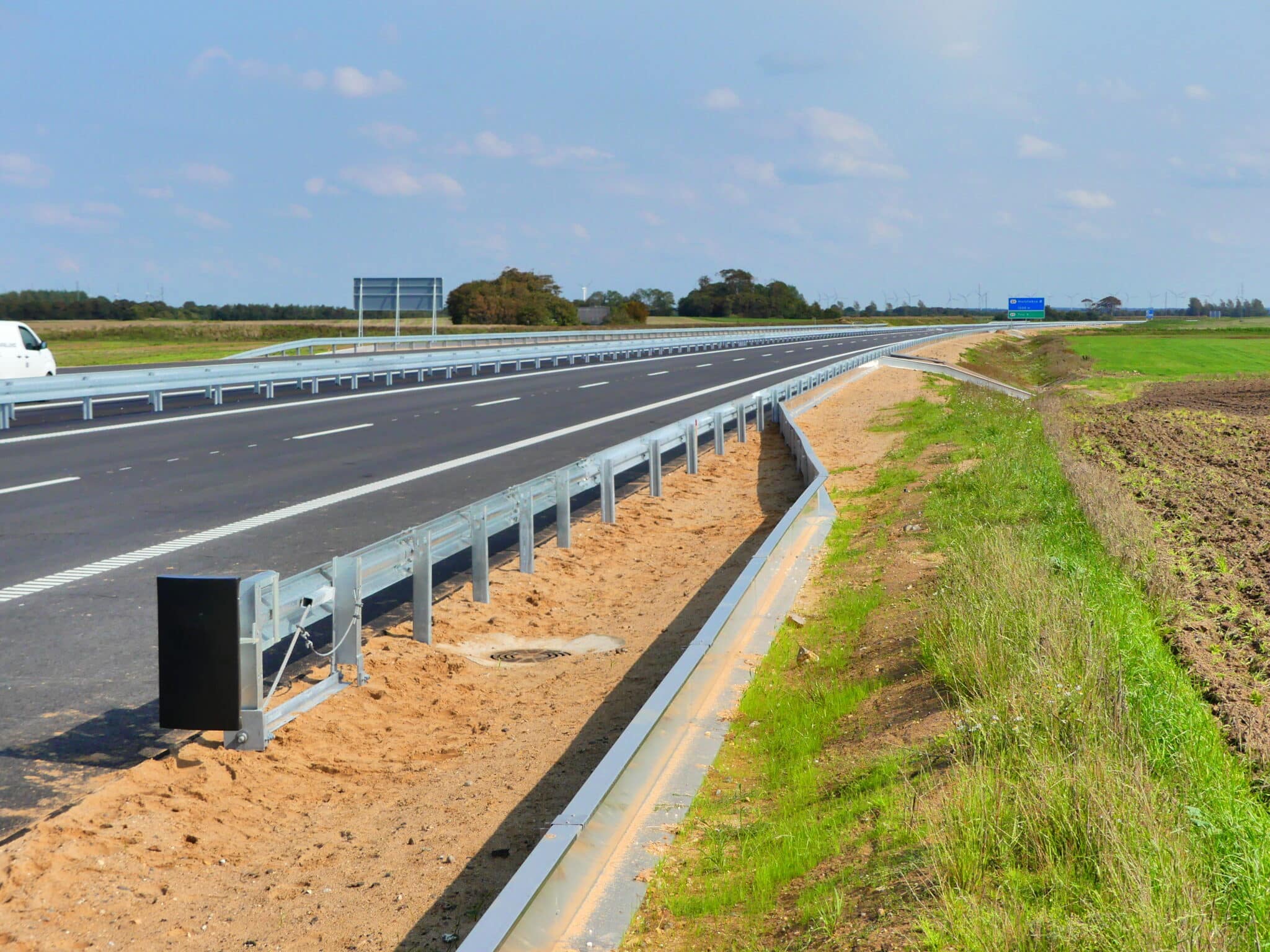

In practice, test conditions are rarely replicated.Barriers are often installed outside the roadway structure, not within a reinforced roadbed.
In some cases, real-world conditions may even be better than test setups:

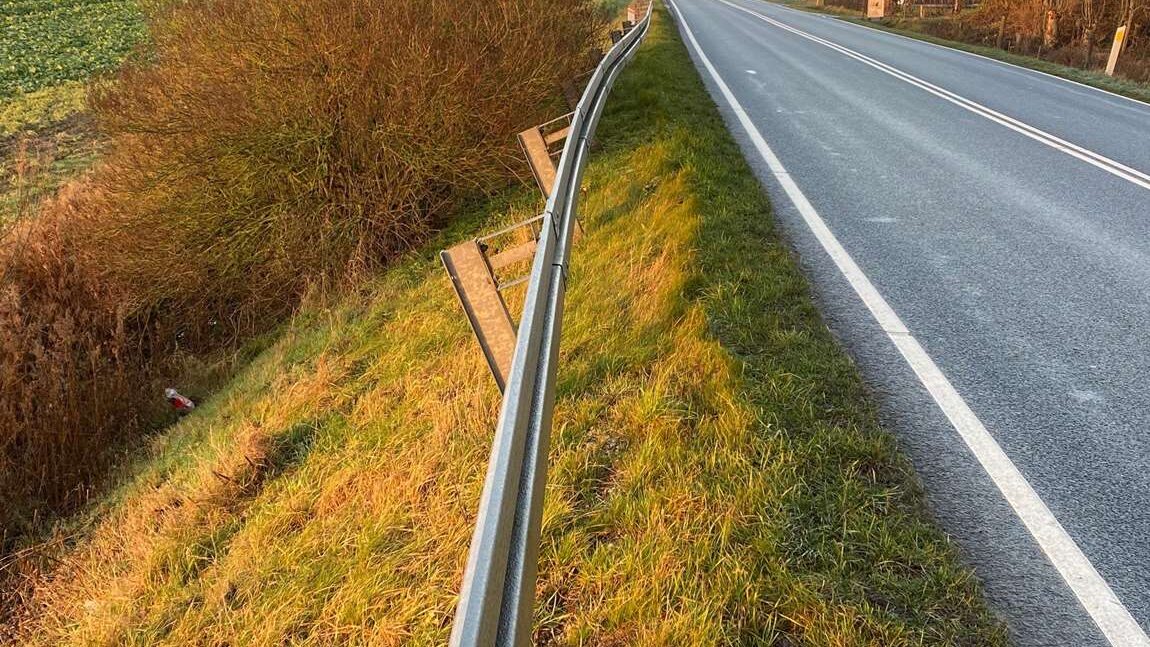

But conditions can also be worse:
Previously, Denmark’s Road Directorate specified exact barrier designs. These included long post lengths (e.g. 120 cm) for deep anchoring.
Today, CE-marked performance-based procurement dominates.Here, weight and price are key competition parameters – often resulting in shorter post lengths (typically 70–95 cm), which reduces material use but may also compromise post stability.
Even if a barrier is CE-marked and complies with standards, those two factors alone do not guarantee safety.
As a client or road authority, you should assess the actual soil conditions at your installation site. Soil conditions vary from project to project and have major influence on barrier performance and safety.
Focus on the posts. Using longer posts or embedded plate systems helps ensure anchoring – especially in soft or unstable soils.
You can perform an on-site load test (as used extensively in the UK) to assess whether barrier posts perform as in the test environment.
Using a special test rig, a simulated vehicle impact is applied to the barrier. If the posts fail to meet the required resistance, longer posts or reinforcement plates are used until compliance is achieved.
A specialized barrier contractor brings expertise and practical experience from many projects. Just discussing these topics early can bring you closer to a safer and more reliable barrier solution.
If you wish to peruse our products within crash barriers, then click here.
Our committed and skilled advisers are ready to help you with solutions that both take into account good finances, the working environment and high quality.
We believe that the mast is the most important design element along the road. Others may see masts as a necessary evil to position lighting…

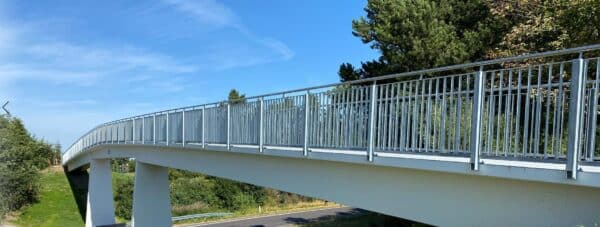

Good to Know About Railings What Type of Railing? Railings can be divided into the following categories: CE-approved bridge railings – tested and certified according…
